Product Overview
- Oregon® 82-515 Spindle – OEM to Fit MTD:
- 618-0240, 918-0240, 618-0430A
- Spindle Assembly
- Fits center & RH on 46″ deck
- Fits star hole blades
- 600 & 800 series riders 1997 & newer
- (3) for 600 series
- (2) 82-215, (1) 82-516 for 800
- Use Oregon® 45-259 bearings
- Use Oregon® spindle shaft 85-049
- Use Oregon® Pulley 44-102

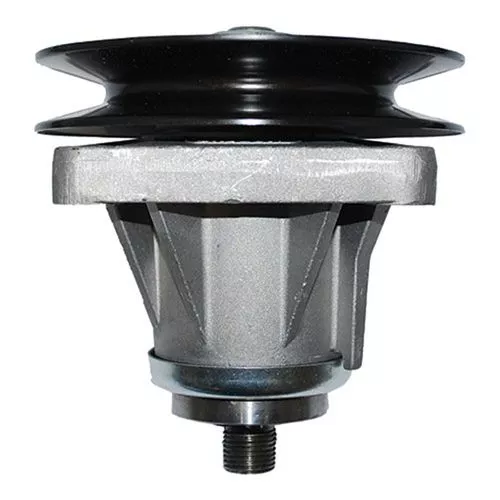

This quill assembly is OREGON ® 82-515.It is a replacement spindle assembly made for select MTD lawn mower decks 1997 and newer. This quill kit can be used center and right side on 46 inch decks of 600 and 800 series mowers. The spindle assembly comes with bearing and shaft.
Specifications
- To Fit:
- MTD – OEM 618-0240, 918-0240, 618-0430A, 618-0430B, 918-0430A
- Fits center and right side on 46″ deck
- Fits star hole blades
- 600 and 800 series riders
- 1997 and newer
- (3) for 600 series
- (2)82-515 and (1) 82-516 – ASC 39294 for 800
- Use Oregon 42-259 – ASC 44994 bearings
- Use Oregon 85-049 – ASC 85439 spindle shaft
- Use Oregon 44-102 – ASC 60335 pulley
- Use Oregon 98-054 – ASC 42745 blade
- Pulley diameter 5″
- Overall Height 4-3/4″
Mounting Holes are not Tapped
