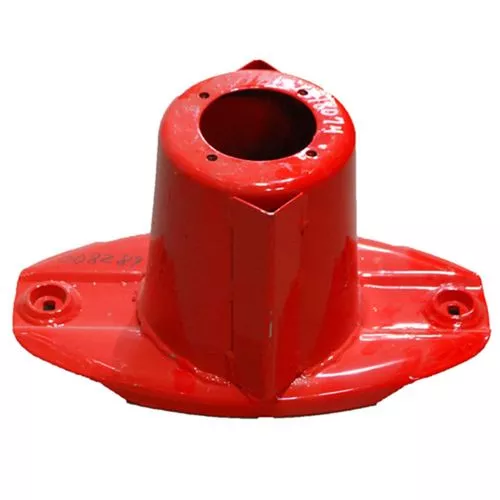

MF2270 Hat for Morra Disc Mower

Product Overview

Specifications

• Used on MF2270 – Morra 7 Disc Mowers on both ends of the cutter bar
• Blade hole spacing is 13-1/2″ center to center
• The topside holes are 4-1/4″ center-to-center spacing with a 1/4″ diameter
• The top large hole in the middle is 3-1/2″ diameter
• The bottom side small bolt spacing is also 4-1/4″ spacing center-to-center, but in 1/2″ diameter
