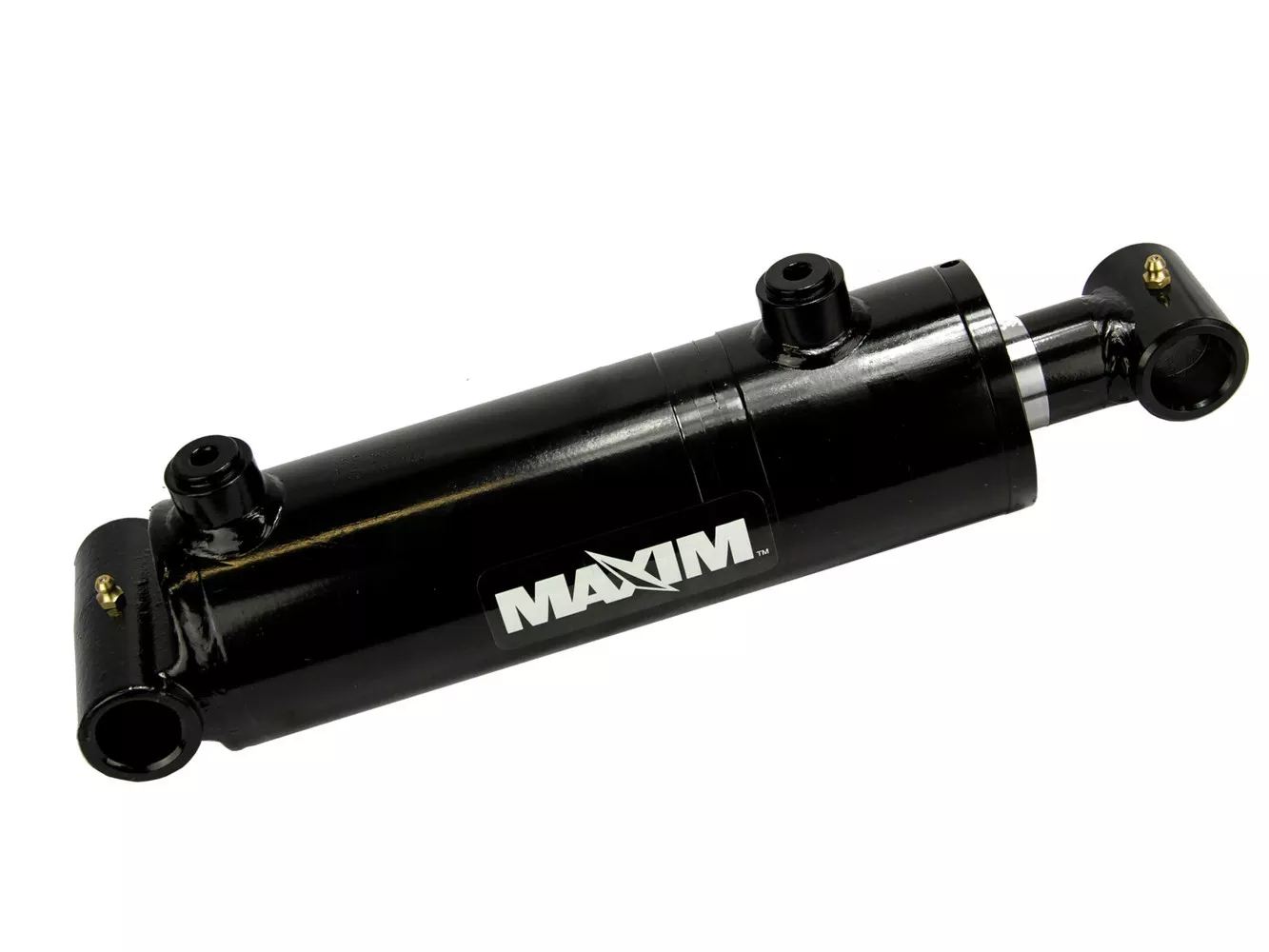

This MAXIM™ WT 3000 PSI welded cylinder is crosstube mounted, and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. Painted black.
Specifications:
Bore: 5 in
Stroke: 48 in
PSI: 3000
Retracted: 59 in
Pin Diameter: 1.5 in
Rod Diameter: 2.5 in
Extended: 107 in
Column Load: 41837 lbs
Port Size: 3/4 NPT
Brand: Maxim
