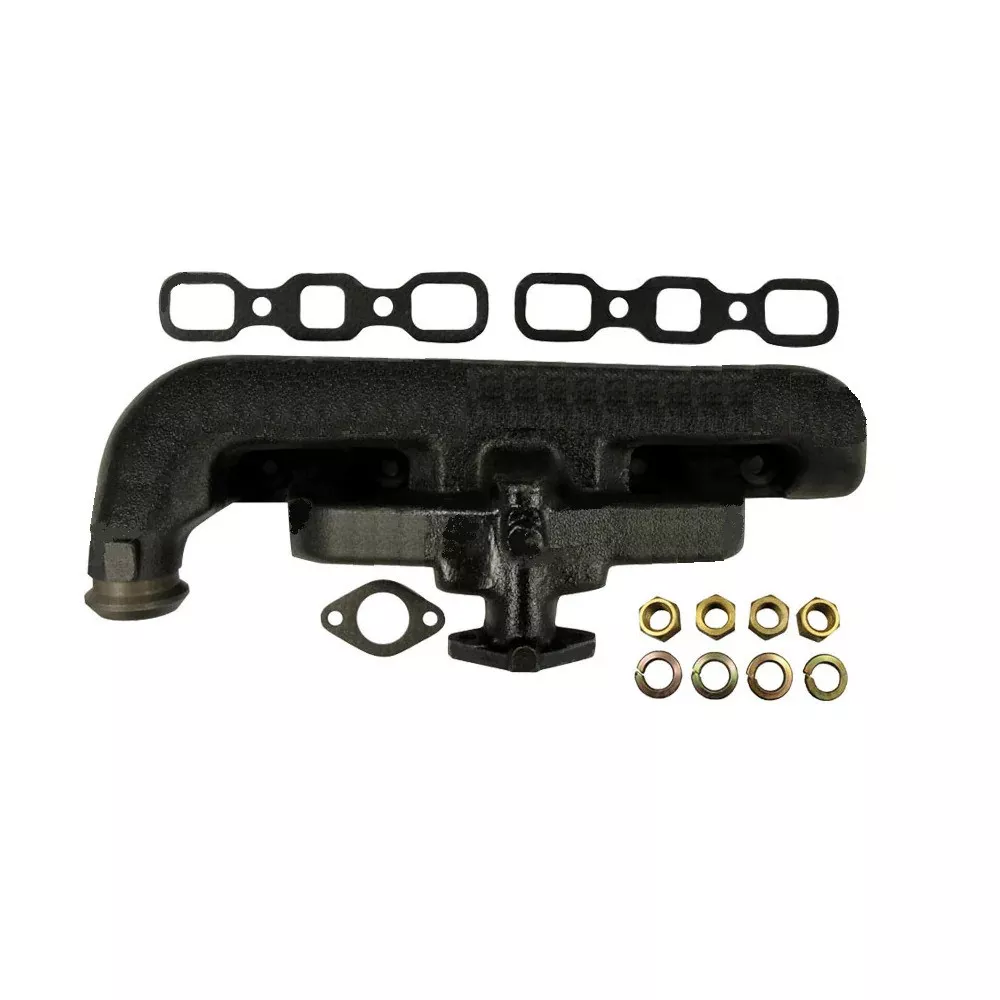

Aftermarket Manifold with Gaskets & NutsTech Info:
-(1) 4-pc Nut Kit for Manifolds
-This kit includes brass nuts and yellow zinc plated washers.
-7/16″ x 20 pitch, brass w/lock washer.
-(2) Manifold Gaskets
-Replace Part Number: 9N-9448
-(1) Manifold
-The center to center bolt holes are 2 1/2″ on the flange.
-The ID on the flange is 1″.
-The exhaust is 1 3/16″ ID and 2 1/16″ OD.
-Overall length is 17″ Approximately
-Replaces Part Numbers: 9N9425WG
-(1) Carburetor to Manifold Gasket
-2-7/8″ x 1-34″
-2-1/4″ C-to-C
-Replaces Part Numbers: 15162A, 1506634M1, 181531M2
Fits Massey Ferguson:
Utility Tractor Models: TE20, TO20, TO30
Replaces Part Number(s): MCK-2, 181461M91
Models This Part Fits:
Additional Information:
(1) 4-pc Nut Kit for Manifolds This kit includes brass nuts and yellow zinc plated washers. 7/16″ x 20 pitch, brass w/lock washer. (2) Manifold Gaskets Replace Part Number: 9N-9448 (1) Manifold The center to center bolt holes are 2 1/2″ on the flange. The ID on the flange is 1″. The exhaust is 1 3/16″ ID and 2 1/16″ OD. Overall length is 17″ Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8″ x 1-34″ 2-1/4″ C-to-C Replaces Part Numbers: 15162A, 1506634M1, 181531M2 Manifold with Gaskets & Nuts
Reference Numbers: 1109-9909KIT, 9N9425, 9N9425KIT
