Product Overview

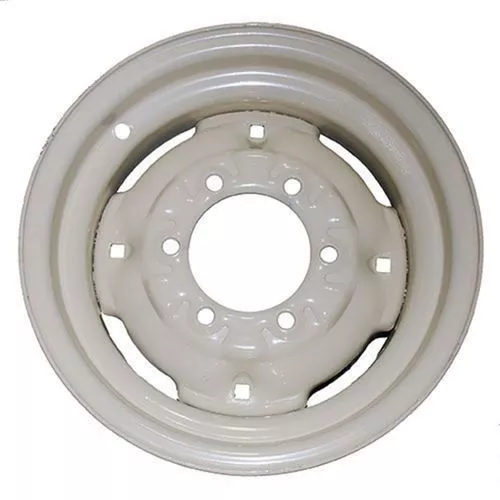

This implement wheel is constructed of heavy-duty steel. The wheel diameter is 15 inches and 6 inches wide. Implements that have hubs with 6 bolts or lugs on 6-inch spacing would accept these wheels. The wheels are painted for additional protection from the elements.
Specifications
- Implement wheel
- Maximum mph is 20
- Weight capacity is 3300 lbs
- Diameter: 15 in.
- Width: 6 in.
- Center hole: 4-5/8 in.
- Lug holes: 6
- Bolt pattern: 6 in. center to center
- Painted finish for rust resistance
- If hub is needed, use 25672
- If spindle is needed, use 25677
- Tires to fit:
- 16577 Implement Tire, 9.5L-15SL, Max Load 2420 Lbs.
- 16579 Implement Tire, 11L-15SL, Max Load 2540 Lbs.
- 50555 12.5L-15SL 10 Ply Implement Tire
