Product Overview
With a maximum continuous pressure of 100 PSI and a maximum intermittent pressure of 150 PSI, this cast iron roller pump can handle fluids up to 140 degrees in temperature. The port size is 3/4 in. and the shaft seals are standard Viton seals. This four roller pump is cast iron and has a 5/8 in. solid shaft.
Specifications

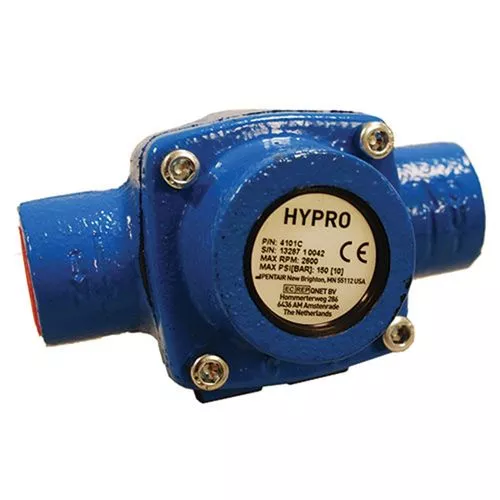

- Hypro Cast Iron Roller Pump Model 4101C
- Port Size: 3/4 in. NPT
- Maximum flow rate: 7 gpm at 2,600 rpm
- Maximum continuous pressure: 100 PSI
- Maximum intermittent pressure: 150 PSI
- Maximum rated speed: 2600 rpm
- Maximum fluid temperature: 140 degrees
- Pump shaft rotation: CW
- Viton shaft seals
- Standard rotation directly couples to gasoline engines
- Special torque arm and base kit is available for gas engines
- Quick coupler not included: Use ASC 27305 Duel speed coupler 540/1000 RPM
- For Torque arm and chain see item 22382
