Product Overview

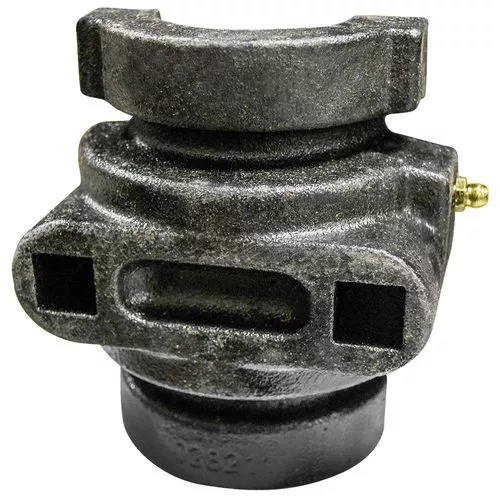

Replacing spacer spools and bearing housing is easy and quick with the correct tools. This half disc bearing housing is coupled together around a corresponding spacer spool. Once joined, they can be connected/mounted to your bearing hanger. Equipped with a grease fitting, the bearing can be lubricated for less wear and tear and for future maintenance. This bearing half fits many, many, brands of disc harrows including HI-CO which is made by Howse® Implement Company.
Specifications
- Half disc bearing housing
- 5 in. long
- 4 grooves
- 2 middle grooves are 1-1/2 in. center to center
- Outside grooves are 4 in. center to center
- Bolt holes are 3 in. center to center
- Old style bearing cap construction
- Grease fitting
- Requires two per set
- Use with bearing spacer spool 28210 – Bearing Spacer Spool, 1″ x 7-1/2″
- Use with rib bearing spool 108675 – Rib Bearing Spool 9″
- Bolt to attach the housing to bearing hanger 107693- Carriage Head Bolt 5/8″ x 5″
- For 5/8″ nut use 13108 – Finish Hex Nut 5/8″ (Coarse)sold by the pound or 68360 sold each
- For 5/8″ lock washer use 13098 – Lock Washer 5/8″ sold by the pound or 75622 sold each
- For grease fitting use 49109
- Fits HI CO made by Howse® Implement Company and numerous other brands
