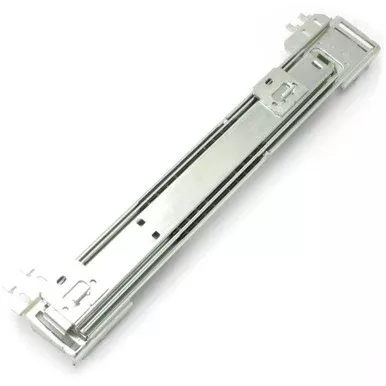

Full Extension Ball Bearing Drawer Glides 30-59 Inch

Full Extension Ball Bearing Drawer Glides 30-59 Inch

Sold in Pairs
Zinc plated three-section slide assembly
Closed length: 30-1/4″
Extended Length: 59″
Profile height: 2-1/4″ (not counting mounting appendage)
Profile depth: 3/4″ (not counting mounting appendage)
Max profile height: 3-3/4″
Max profile depth: 2-3/16″
2 T-tabs on interior 3/4″ length x 1/8″ thick (18-1/2″ between them)
1 Mounting hole above each T-tab with ~ 19-1/4″ center to center between tabs
2 Straight tabs on bottom of both mounting appendage 1/8″ thick x 1/4″ width x 1/4″ length (9/16″ between each tab)
2 Offset tabs on top of both mounting appendage 1/8″ thick x 1/4″ width x 1/4″ length (9/16″ between each tab)
Mounting holes below offset tabs ~ 7/8″ center to center on both front and rear mounting appendage
Non-locking when extended
Catch on rear of slide to help keep it retracted
Ball bearing slides
Made for Hoffman Enclosures Inc by CompX® Waterloo
