Applications
The FloTech API Optic 5 wire system is perfectly suited for both new and existing tank installations. The components have a long list of features which make them more reliable than competitor products; the result is years of trouble free service.
The FloTech API Optic 5 wire system is a conventionally wired system, which requires wiring connections to be made using crimp connectors.
Available Options
Custom probe lengths are available upon request.
Description
1 compartment system
Features
API optic 5 wire, 1 compartment overfill detection system (top only)
FloTech brand overfill system kits provide everything needed to install a new overfill system on your tank

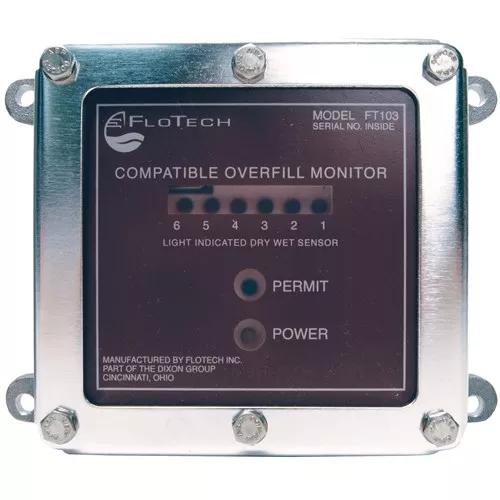

Systems include 1 FT103 monitor, 1 7” FT101 overfill sensor per compartment, cable and strain reliefs (cable glands)
Note
All FloTech™ electronics manufactured after January 1, 2015 are covered by our 5 year warranty.
Specifications
Compatible with the Scully brand 5 wire optic system. The components are drop-in replacements and compatible with the signal format required by Scully brand API Optic 5 wire on-board monitors.
Use
Top detection only
