Product Overview

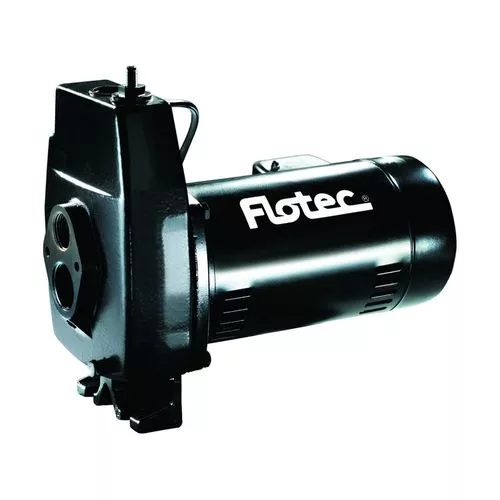

Flotec FP422 Cast Iron Convertible Jet Pump 3/4 Horsepower Without the Deep Well Injector Kit
Specifications:
- Can be used for deep or shallow well
- Maximum capacity: 11.9 GPM (shallow well)
- Flow at 10′ lift and 40 psi is 10.8 GPM (shallow well)
- Maximum lift: 25′ with a shallow welland 100′ with a deep well setup
- Maximum pressure: 60 psi with a shallow well setup and 54 psi with a deep well setup
- Pressure switch settings: 30 psi on and 50 psi off
- Suction pipe size 1 1/4″ NPT
- Discharge pipe size 1″ NPT
- AMP draw (full load): 6.1 amps on 230 volts and 12.2 amps on 115 volts
- Voltage: 230 voltsor 115 volts 60 HZ
- Recommended breaker: 15 amp for 230-volt and 20 amp for 115-volt
- Maximum water temperature: 140 degrees Fahrenheit (60° C)
- Superior performance at depths to water of 100′ or less
- Rugged, heavy-duty pump housing
- Ready to install 230-volt motor– see manual for the 115-volt conversion
- Pressure switch pre-wired with 30-50 psi pressure setting
- Owner’s manual
