Product Overview

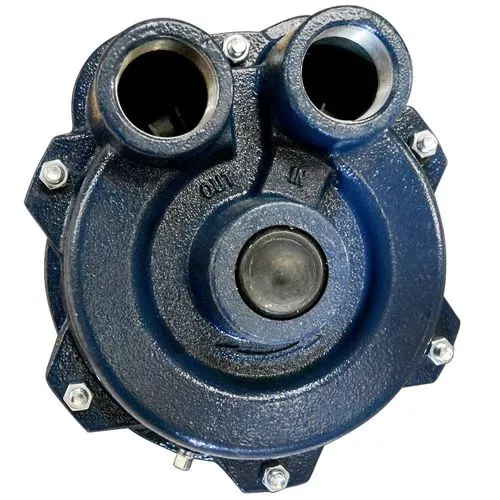

The Delavan ™ Turbo 90 ™ turbine pump is designed for sprayer and liquid transfer applications. This turbine pump is constructed with a heavy-duty cast iron body and a 15/16 in. stainless steel shaft with stainless steel bearings. The Viton seals, face seals, and non-corrosive impeller allow this pump to handle a wide variety of chemical and agricultural needs. The pump runs directly off a 1000 rpm pto shaft and has a 1-1/2 in. inlet and outlet port. The large ports allow for high volume flow. Flow rates are dependent on rpm and pressure.The maximum flow rate is 90 gpm at 0 psi and 1200 rpm.
Specifications:
- Delavan ™ Turbo 90 ™ Turbine Pump
- Model: 26556-11 with face seals
- 1-1/2 in. inlet and outlet ports
- Works directly off of a 1000 RPM PTO (not recommended for use with a 540 RPM PTO)
- 15/16 in. Stainless steel shaft and bearings
- Corrosion resistant thermoplastic impeller
- Viton seals
- Volume up to 90 gpm
- Pressures up to 75 psi
- Maximum recommended temperature: 120 ° F
- Coupler is not included: use ASC 31979
- For Torque bar and chain use item 68408
