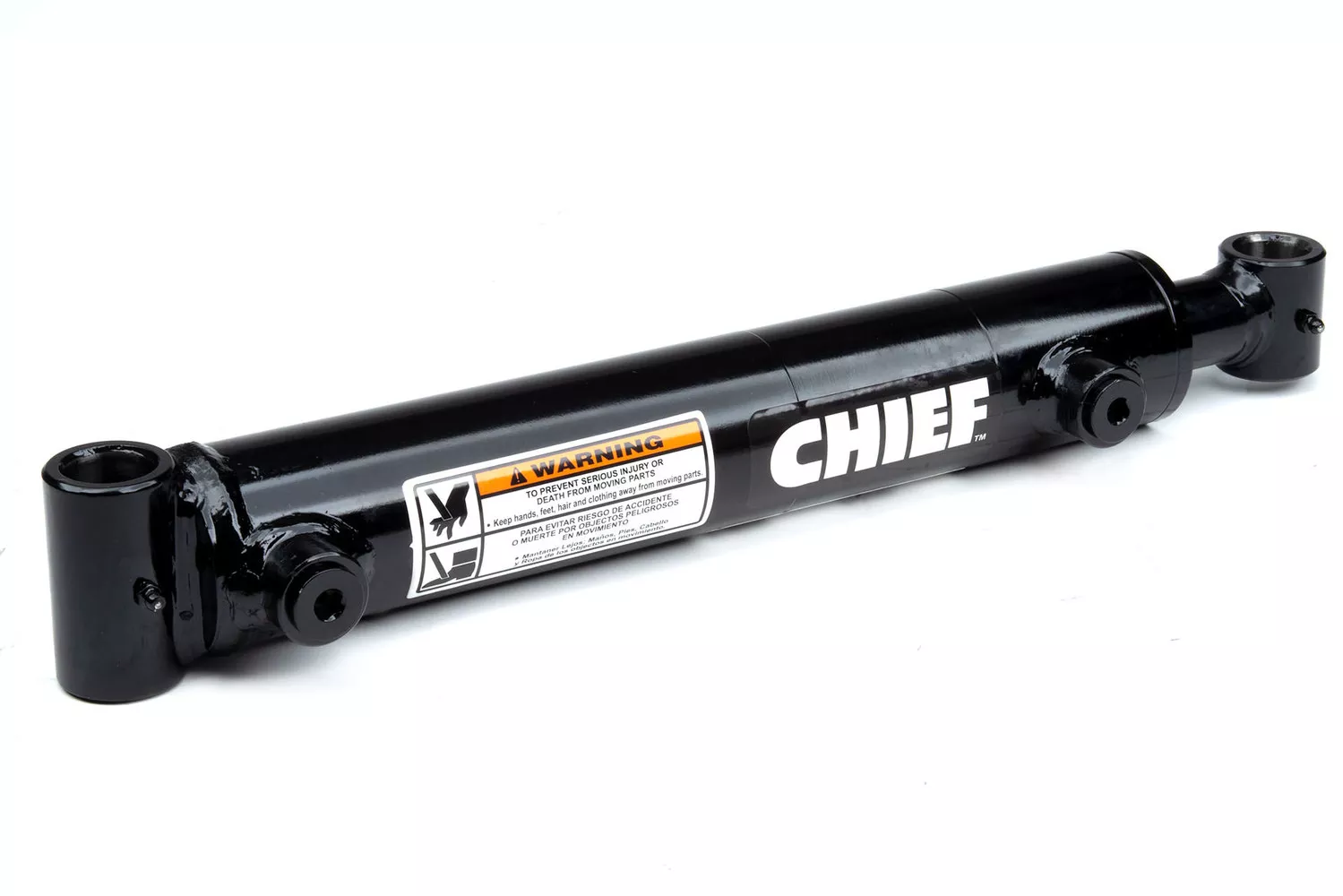

This 5 in bore x 54 in stroke Chief WT Welded Hydraulic Cylinder is our strongest welded cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications:
Bore: 5 in
Stroke: 54 in
PSI: 3000
Retracted: 68 in
Pin Diameter: 1.5 in
Rod Diameter: 2.5 in
Extended: 122 in
Column Load: 34586 lbs
Port Size: 3/4 NPTF
Brand: Chief
