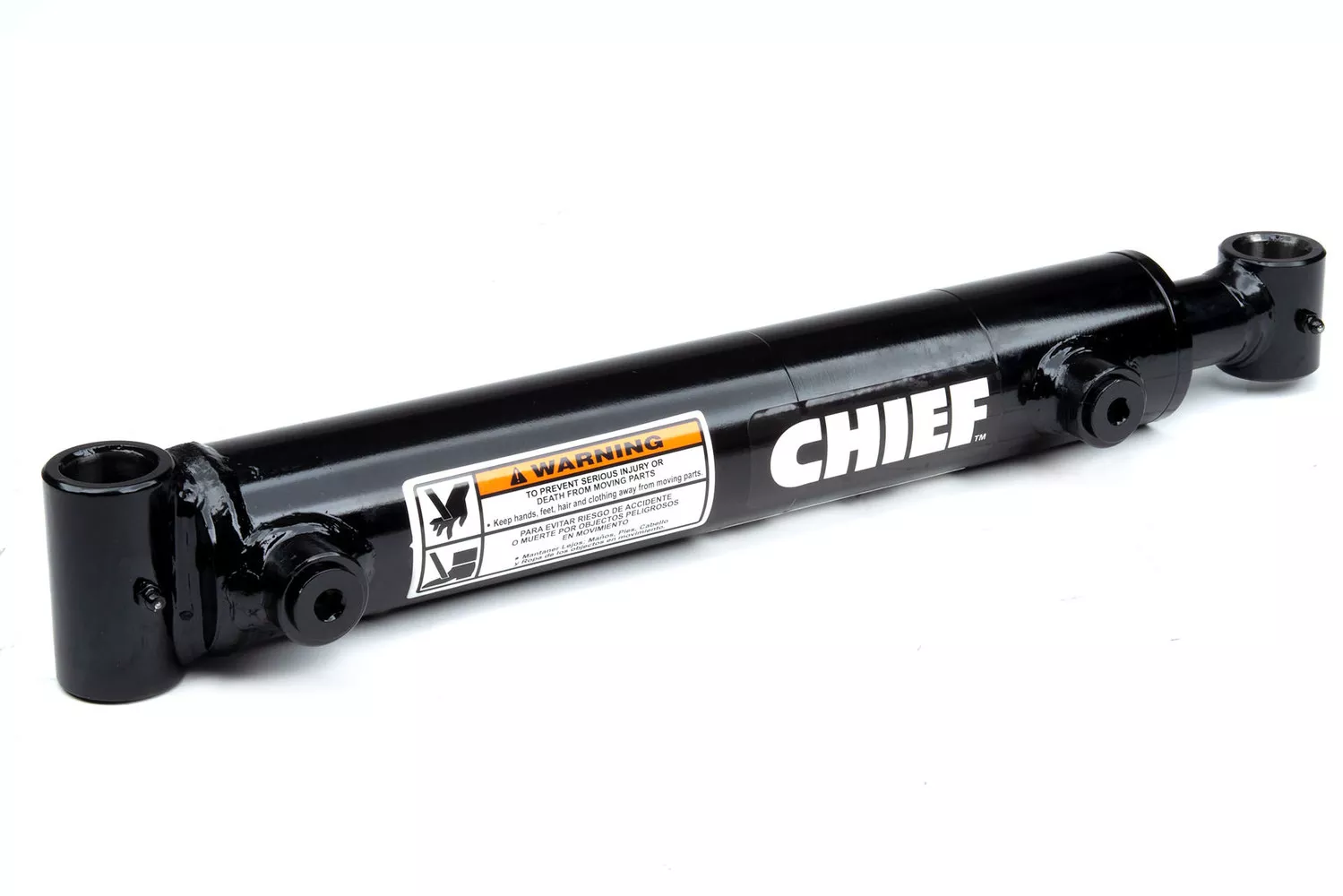

This 4 in bore x 42 in stroke Chief WT Welded Hydraulic Cylinder is our strongest welded cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications:
Bore: 4 in
Stroke: 42 in
PSI: 3000
Retracted: 51 in
Pin Diameter: 1.25 in
Rod Diameter: 2.25 in
Extended: 93 in
Column Load: 30920 lbs
Port Size: SAE 8
Brand: Chief
FREE SHIPPING IN CONTINENTAL USA
