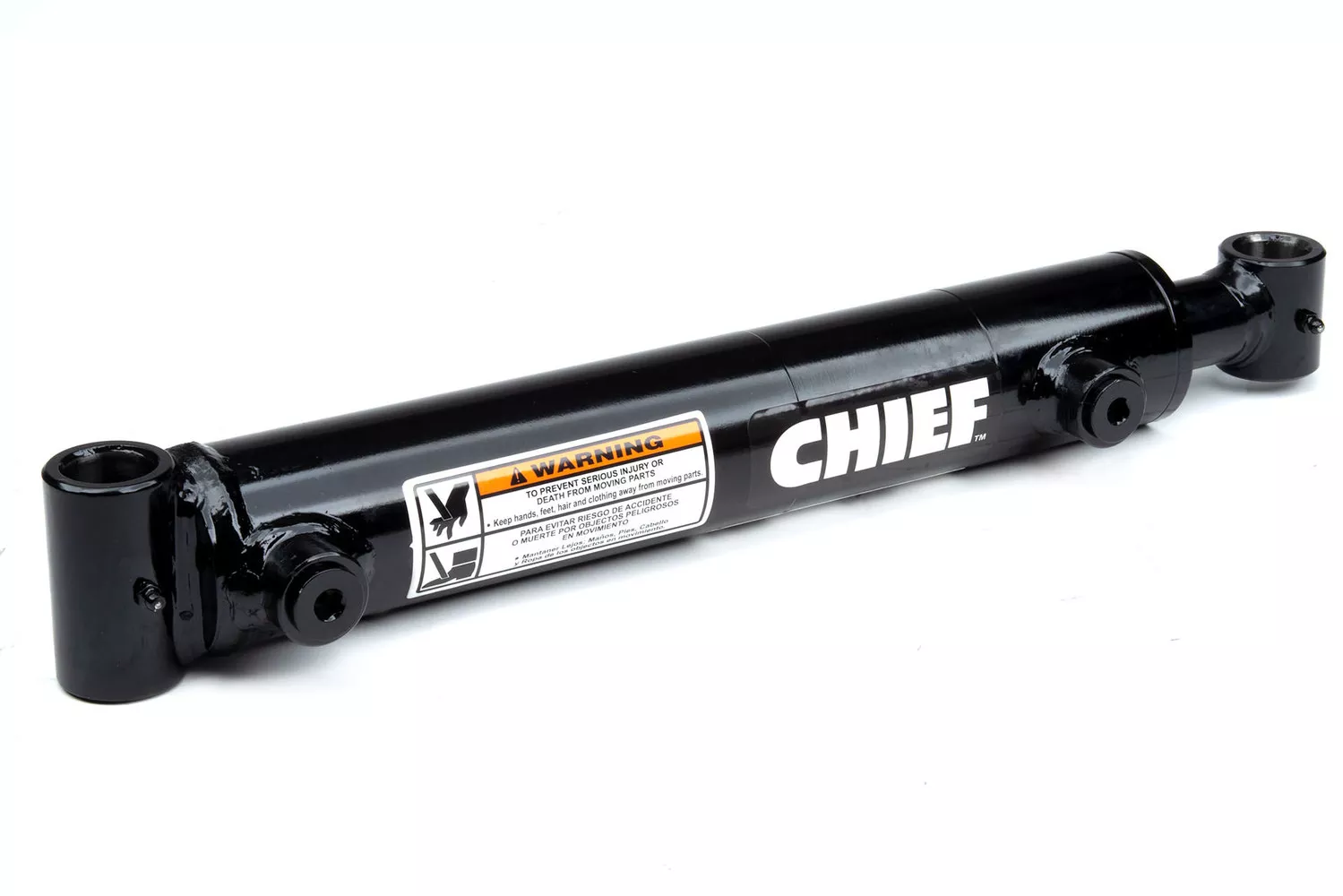

This 3.5 in bore x 16 in stroke Chief WT Welded Cross-Tube Hydraulic Cylinder is Bailey International’s strongest cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
Specifications:
Bore: 3.5 in
Stroke: 16 in
PSI: 3000
Retracted: 24 in
Pin Diameter: 1 in
Rod Diameter: 2 in
Extended: 40 in
Column Load: 28860 lbs
Port Size: SAE 8
Brand: Chief
