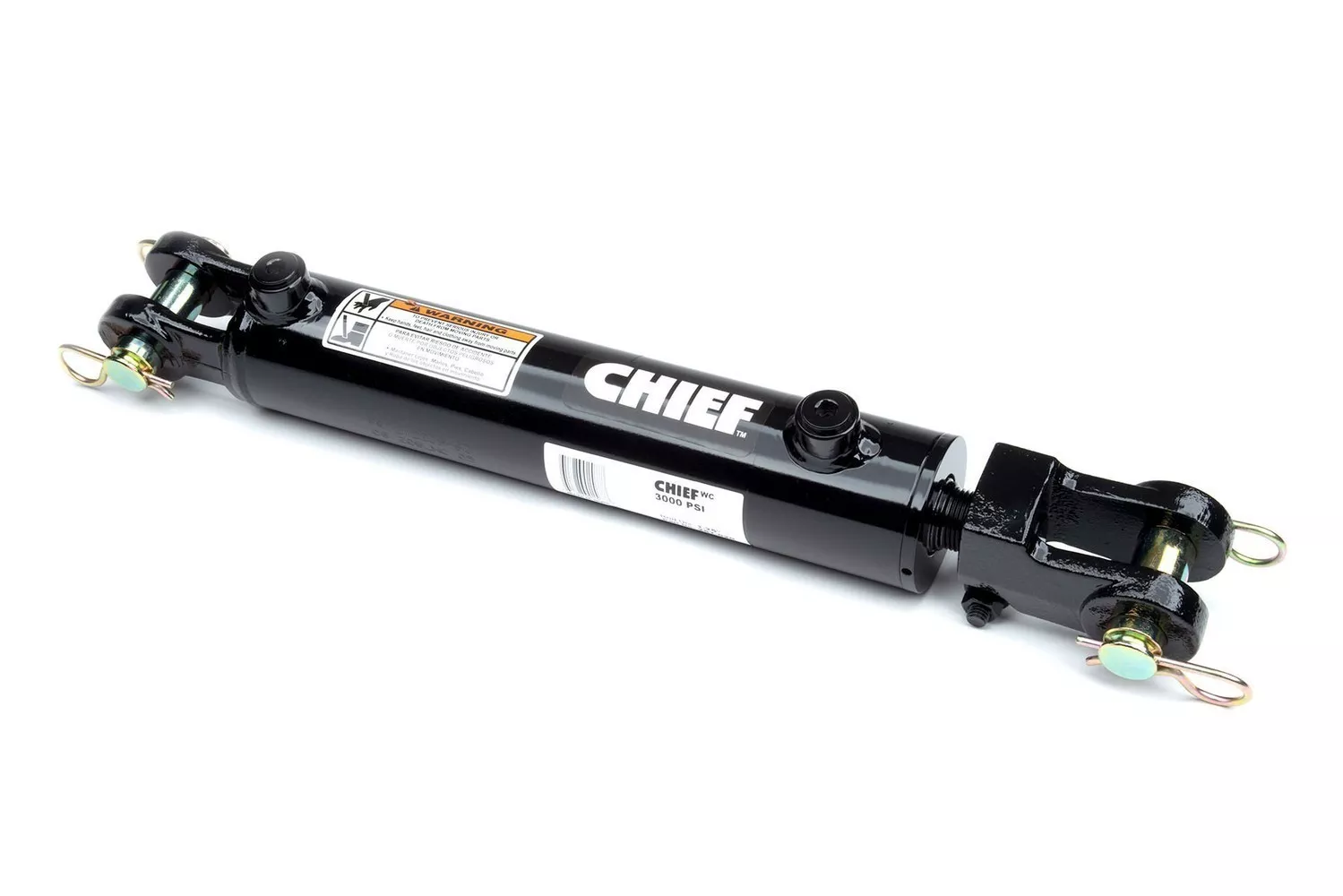

This 4 in bore x 16 in stroke Chief WC Welded Hydraulic Cylinder is a high quality welded, double acting cylinder with a strong forged steel base. Every Chief WC cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.
Specifications
Bore: 4 in
Stroke: 16 in
PSI: 3000
Retracted: 26.25 in
Pin Diameter: 1 in
Rod Diameter: 2 in
Extended: 42.25 in
Column Load: 37690 lbs
Port Size: SAE 8
Weight: 56 lb
