Product Overview

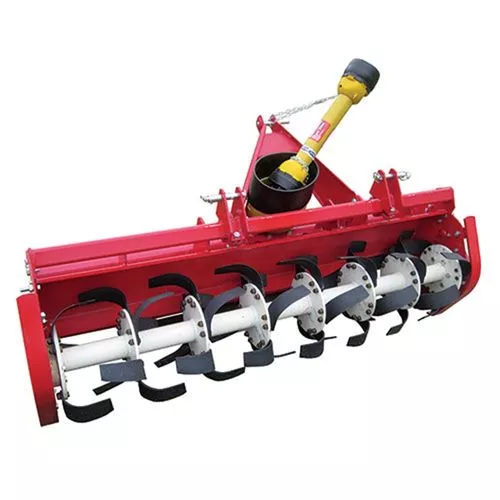

Created by Caroni, this FM1700ASC rotary tiller can handle a small to medium sized farm and quickly hitches to any 35 to 60 HP pull along tractor. Measuring across with a 67 in. working width and an 8 in. depth, this tiller has eight flanges with 42 tines in total. It includes a Category 1 quick hitch and a manual tension regulator, as well as a universal joint with clutch for quick connections. A third floating point allows for a 6-1/2 in. displacement to the right to keep the 540 rpm PTO shaft aligned.
Specifications:
- Caroni FM1700ASC Rotary Tiller
- Working width: 67 in.
- Working depth: 8 in.
- 6 holes per disc, 42 tines total
- Manual tension regulator
- Number of flanges: 8
- 4 holes, 10″ front to back (inside holes are 3-1/2″ apart sided to side)
- Outside holes are 4-1/2″ apart holes are 1/2″ diameter
- 2 center slots are 2-1/2″ long and 9/16″ wide
- Displaces to right 6-1/2 in.
- Weight: 667 lbs.
- Standard adjustable hitch
- Universal joint with clutch
- Tractor power: 35 – 60 HP
- PTO speed: 540 rpm
- Third floating point
- Category 1 quick hitch
- Replace right hand blades with ASC 101402
- Replace left hand blades with ASC 101403
- Replacement 43415 – Left Support
- Replacement 43416 – Right Support
- Replacement 43184 – Replacement Hood
- Replacement 45902A – (37.8″ OL) PTO Shaft with Clutch
Parts Breakdowns:
- 67″ Rotary Tiller – FL1700
Additional Information:
- Caroni Rotary Tillers FL & FM Series – Brochure
From 32 in. to 72 in. working widths, we offer a wide variety of tillovators and Caroni mower parts to choose from.
