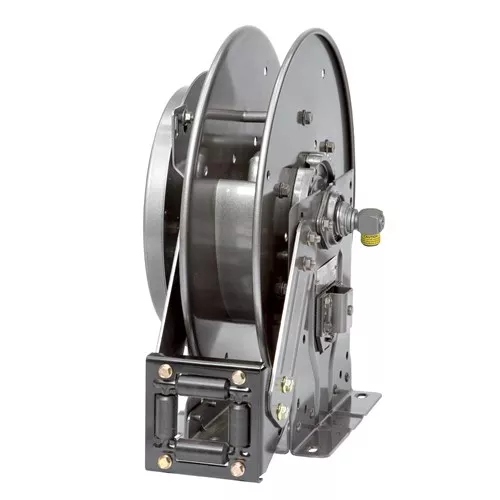

7500
Manual or Power Rewind Reels
To handle 1-1/4” or 1-1/2” I.D. hose
Fuel Dispensing / Bulk Transfer / Suction / Discharge
Heavy-duty reel designed for longer lengths.
Choose gear-driven crank rewind or chain and sprocket drive powered by an electric, hydraulic, or compressed air motor.
Crank rewind reels supplied with pinion brake and power rewind reels with a comet brake.
Standard inlet: 90° ball bearing swivel joint, 1-1/2” female NPT threads and 2” Victaulic® groove.
Standard outlet: 1-1/2” female NPT threads.
Standard: inlet, outlet riser, and hub assembly are steel. Options: also available in aluminum or stainless steel.
Standard pressures to 1000 psi (41 bar), consult factory for other pressure ratings – must specify.
Standard fluid temperatures from -20° F to +212 °F (-29° C to +100° C). Optional temperature ratings available – consult factory.
Rollers and roller mounting brackets are accessory items. Specify roller position.
Optional chain guard available.
