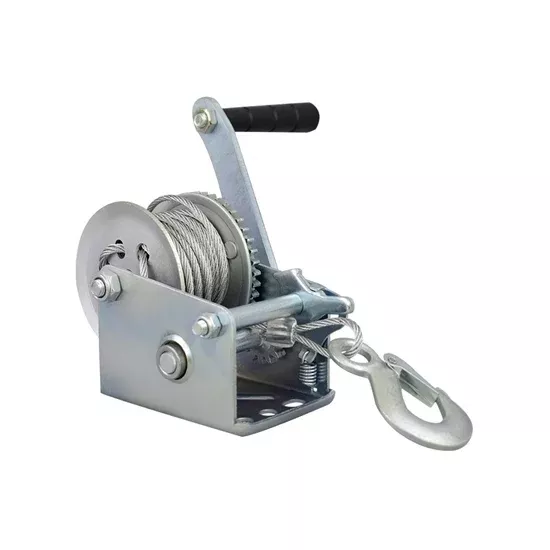

Manual crank winch is convenient for truck, car trailer, camper trailer, boat trailer, utility trailer, off road, vehicle recovery, etc., which is ideal for pulling, lifting and lowering items.
Specification
- Model: ATO-BQC2500
- Working Load: 2500 lbs (1.25 ton)
- Lifting Tension: 1600 lbs (0.8 ton)
- Breaking Strength: 3600 lbs (1.8 ton)
- Material: Rolled Steel
- Gear Ratio: 4.1:8.1
- Cable (Dia x L): Ø5mm x 8m
- Dimension: 245mm (L) x 100mm (W) x 183mm (H)
- Weight: 4.8kg
Note*: Never exceed working load limit.
Details
Tips: How to choose a hand crank winch for vehicle recovery?
A hand winch is a valuable tool for vehicle recovery situations where a powered winch may not be available or practical to use. It can be a reliable and versatile option for pulling vehicles out of sticky situations, such as when stuck in mud, sand, or snow.
Here are some key points to consider when selecting a hand winch for vehicle recovery:
- Load Capacity: Determine the maximum weight of your vehicle and choose a hand winch with a suitable load capacity. It’s generally recommended to select a winch with a rating at least 1.5 times the weight of your vehicle to ensure it can handle the load.
- Cable Length: Consider the distance you may need to pull your vehicle. Choose a hand winch with a cable length that allows you to reach anchor points or sturdy trees/objects nearby. Longer cables provide more flexibility, but keep in mind that longer lengths may require more effort to operate.
- Gear Ratio: The gear ratio determines the amount of pulling power the winch provides. Higher gear ratios provide more pulling power but require more effort to operate. A gear ratio of around 4:1 is a common choice for hand winches, striking a balance between power and ease of use.
- Construction and Durability: Look for a hand winch that is built with durable materials, such as high-quality steel. It should be able to withstand the rigors of vehicle recovery operations. Additionally, consider features like corrosion resistance, as winches are often exposed to outdoor elements.
- Safety Features: Check for safety features like a load-holding brake that keeps the load secure when you release the winch handle. This prevents the vehicle from rolling back or the cable from unspooling unintentionally.
- Portability: If you plan to carry the hand winch with you for off-road adventures, consider its weight and size. Lightweight and compact winches are easier to transport and store.
- Accessories: Some hand winches come with additional accessories like a mounting plate, handlebar straps, or hooks that can enhance their usability and versatility.
