Product Overview

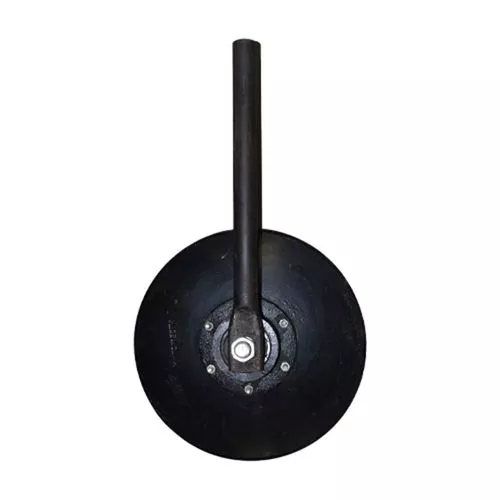

Disc hiller assemblies are used to create a raised garden or seedbed and they can bury underground growing crops such as turnips and potatoes. This 16 in. bed shaper with a 16 in. long shank are equipped with a King style hub with a six bolt mounting 4-1/4 in. pattern. It can be attached to a tool bar in a series of two to create mounds for seeding on the field. Each steel King hub is manufactured to resist weathering and continuous use.
The solid 16 in. shank connected to the disc is also constructed of steel and is 1-3/16 in. in diameter. You can adjust the width of each disc assembly to your particular specifications.
Specifications
- 16 in. disc hiller with 16 in. shank
- Shank diameter: 1-3/16 in.
- Steel construction
- King style hub with 6 holes
- Hub hole spacing 1/4 in. square bolts on 4-1/4 in. pattern
| Product Number |
Ref | Description | Qty Required |
|---|---|---|---|
| 11678 | 2 | 16″ Shank (1-3/16″ rd) | 1 |
| 30336 | 2 | 22″ Shank (1-3/16″ rd) | 1 |
| 35740 | 3 | Hub – No Bearings | 1 |
| 17861 | 4 | 206 GGH Bearing | 1 |
| 80970 | 5 | 12″ Blade 3 MM | 1 |
| 80971 | 5 | 14″ Blade 3 MM | 1 |
| 80973 | 5 | 16″ Blade 3 MM | 1 |
| 82403 | 6 | Snap Ring | 1 |
| 13099 | 7 | 3/4″ Lock Washer | 1 |
| 13109 | 8 | 3/4″ Hex Nut | 1 |
| 33955 | 9 | 3/4″ Flat Washer | 2 |
| 29842 | 10 | 3/4″ x 3-1/2″ Thin Head Bolt | 1 |
| 13103 | 11 | 1/4″ Hex Nut | 6 |
| 13093 | 12 | 1/4″ Lock Washer | 6 |
| n/a | 13 | 1/4″ Ribbed Bolt | 6 |
Should this product not fit your requirements, tool bar, or tractor, we carry a variety of disc hillers to offer.
