Product Overview

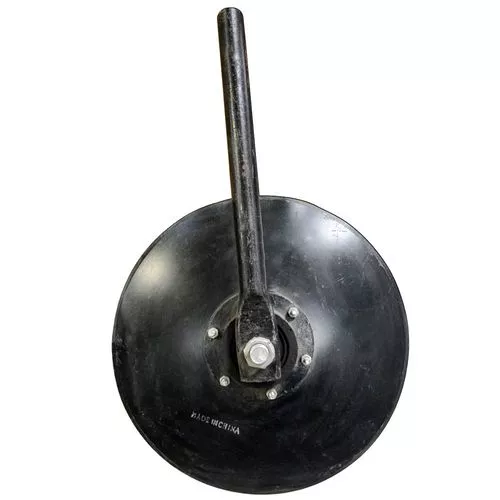

A disc hiller assembly such as this 16 inch disc hiller and 22 inch shank assembly together form raised seedbeds or bury root vegetables. This King style bed shaper has a six bolt on 4-1/4 inch pattern. Take a pair to create seeding mounds in one pass.
The solid 22 inch steel shank connected to the disc measures 1-3/16 inches in diameter. The width of each disc assembly can be adjusted to particular specifications.
Specifications
- 16 in. Disc Hiller with 22 in. Shank
- Shank diameter: 1-3/16 in.
- Steel construction
- King style hub with 6 holes
- Hub hole spacing: 1/4 in. square bolts on 4-1/4 in. pattern
- Replacement shank, ASC 30336
- Replacement hub, ASC 35740
- Replacement bearing, ASC 17861
- If mounting on a 1-3/8″ tool bar use clamp 109931 and wedge bolt 85136
| Product Number |
Ref | Description | Qty Required |
|---|---|---|---|
| 11678 | 2 | 16″ Shank (1-3/16″ rd) | 1 |
| 30336 | 2 | 22″ Shank (1-3/16″ rd) | 1 |
| 35740 | 3 | Hub – No Bearings | 1 |
| 17861 | 4 | 206 GGH Bearing | 1 |
| 80970 | 5 | 12″ Blade 3 MM | 1 |
| 80971 | 5 | 14″ Blade 3 MM | 1 |
| 80973 | 5 | 16″ Blade 3 MM | 1 |
| 82403 | 6 | Snap Ring | 1 |
| 13099 | 7 | 3/4″ Lock Washer | 1 |
| 13109 | 8 | 3/4″ Hex Nut | 1 |
| 33955 | 9 | 3/4″ Flat Washer | 2 |
| 29842 | 10 | 3/4″ x 3-1/2″ Thin Head Bolt | 1 |
| 13103 | 11 | 1/4″ Hex Nut | 6 |
| 13093 | 12 | 1/4″ Lock Washer | 6 |
| n/a | 13 | 1/4″ Ribbed Bolt | 6 |
Should this product not fit your requirements, tool bar, or tractor, we carry a variety of disc hillers to offer.
