Product Overview

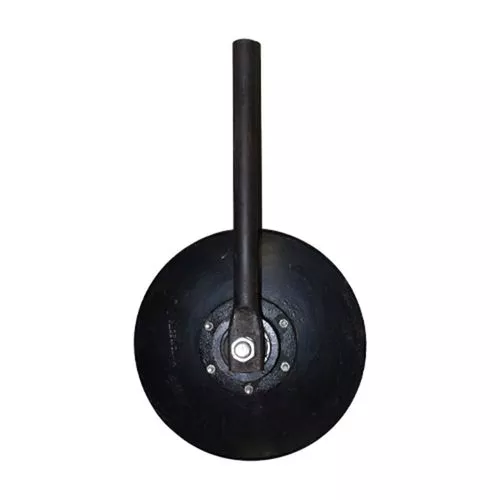

Cover your seeds or create mounds for planting with this 14 inch disc hiller on a 22 inch long shank. The shank is 1-3/16 inch diameter. Use two disc hillers for optimal performance and adjust the width between the discs to create the mounded row width that you require.
Specifications
- 14 In. Disc Hiller with 22 In. Shank
- King style hub
- 6 bolt pattern
- Shank diameter: 1-3/16 in.
- For a replacement bearing, use ASC 17861
- For a replacement snap ring, use ASC 35761
| Product Number |
Ref | Description | Qty Required |
|---|---|---|---|
| 11678 | 2 | 16″ Shank (1-3/16″ rd) | 1 |
| 30336 | 2 | 22″ Shank (1-3/16″ rd) | 1 |
| 35740 | 3 | Hub – No Bearings | 1 |
| 17861 | 4 | 206 GGH Bearing | 1 |
| 80970 | 5 | 12″ Blade 3 MM | 1 |
| 80971 | 5 | 14″ Blade 3 MM | 1 |
| 80973 | 5 | 16″ Blade 3 MM | 1 |
| 82403 | 6 | Snap Ring | 1 |
| 13099 | 7 | 3/4″ Lock Washer | 1 |
| 13109 | 8 | 3/4″ Hex Nut | 1 |
| 33955 | 9 | 3/4″ Flat Washer | 2 |
| 29842 | 10 | 3/4″ x 3-1/2″ Thin Head Bolt | 1 |
| 13103 | 11 | 1/4″ Hex Nut | 6 |
| 13093 | 12 | 1/4″ Lock Washer | 6 |
| n/a | 13 | 1/4″ Ribbed Bolt | 6 |
Should this product not fit your requirements, tool bar, or tractor, we carry a variety of disc hillers to offer.
