Product Overview

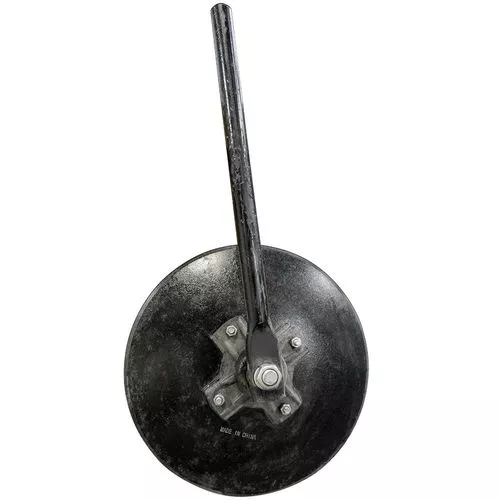

Create a raised seedbed or bury root vegetables with a disc hiller assembly. This 14 inch Blanton style bed shaper has a 22 inch long shank with a four bolt on 5 inch pattern. It is created to withstand continuous use and weathering and can be attached to a tool bar in a set of two to create seeding mounds.
The solid 22 inch steel shank connected to the disc measures 1-3/16 inches in diameter. The width of each disc assembly can be adjusted to particular specifications.
Specifications
| Product Number |
Ref | Description | Qty Required |
|---|---|---|---|
| 87728 | 1 | 12″ Blade 3 MM | 1 |
| 25900 | 1 | 14″ Blade 3 MM | 1 |
| 25901 | 1 | 16″ Blade 3 MM | 1 |
| 11679 | 2 | Hub – No Bearings | 1 |
| 11678 | 3 | 16″ Shank (1-3/16″ rd) | 1 |
| 30336 | 3 | 22″ Shank (1-3/16″ rd) | 1 |
| 17849 | 4 | 204-BBAR | 2 |
| 27936 | 5 | Snap Ring | 2 |
| 13275 | 6 | 5/16″ Carriage Bolt | 4 |
| 13104 | 7 | 5/16″ Hex Nut | 1 |
| 13094 | 8 | 5/16″ Lock Washer | 4 |
| 29842 | 9 | 3/4″ x 3-1/2″ Thin Head Bolt | 1 |
| 13099 | 10 | 3/4″ Lock Washer | 1 |
| 13109 | 11 | 3/4″ Hex Nut | 1 |
| 33955 | 12 | 3/4″ Flat Washer | 1 |
| n/a | Spacer | 1 |
