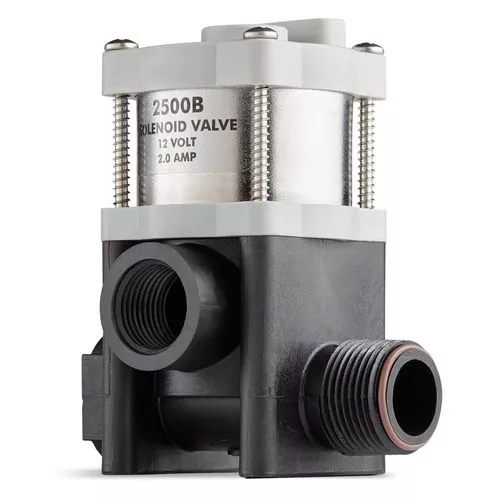

Product OverviewThis 12 Volt single electric boom shut-off solenoid valve is used for larger flows and is designed to be used for agricultural crop sprayers. It is designed to spray a variety of fluids.
This single electric boom shutoff solenoid valve has a 3/4 in. female inlet, 3/4 in. male bypass outlet and 1/2 in. NPT female boom line outlet. It has a maximum 100 PSI operating pressure and 0-10 GPM (pressure drop is only 5 PSI loss at 10 GPM).
It has a current draw of only 2.0 amps per valve at 12 Volts. The chemical resistant glass filled nylon body comes with a Viton seal and “O” rings. The maximum operating pressure is 100 PSI and 10 GPM.
Specifications
- Texas Industrial Remcor, Inc.
- 2500B Solenoid Valve
- Single electric boom shutoff valve
- Inlet: 3/4 in. female inlet
- Bypass outlet: 3/4 in. male
- Boom line outlet: 1/2 in. NPT female
- 12 volt: 2.0 amps
- Maximum operating pressure: 100 PSI at 10 GPM
