Product Overview
Specifications

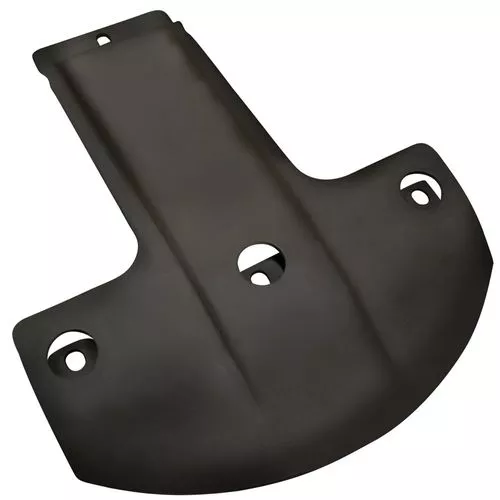

- 008302 Slide for Morra Disc Mowers
- 12-3/16 inches wide
- 15-5/8 inches in height (measuring from the mounting side)
- 1-1/2 inches at its thickest point
- Top Bolt Hole to middle bolt hole center is 10-1/4 inches
- From both outside bolt hole centers, the measurement is 9-7/8 inches
- For bolts use (3) of ASC 58162 and (1) of ASC 44509
- For Nuts, use 39633 – Nut for Morra Disc Mower (Qty 4)
